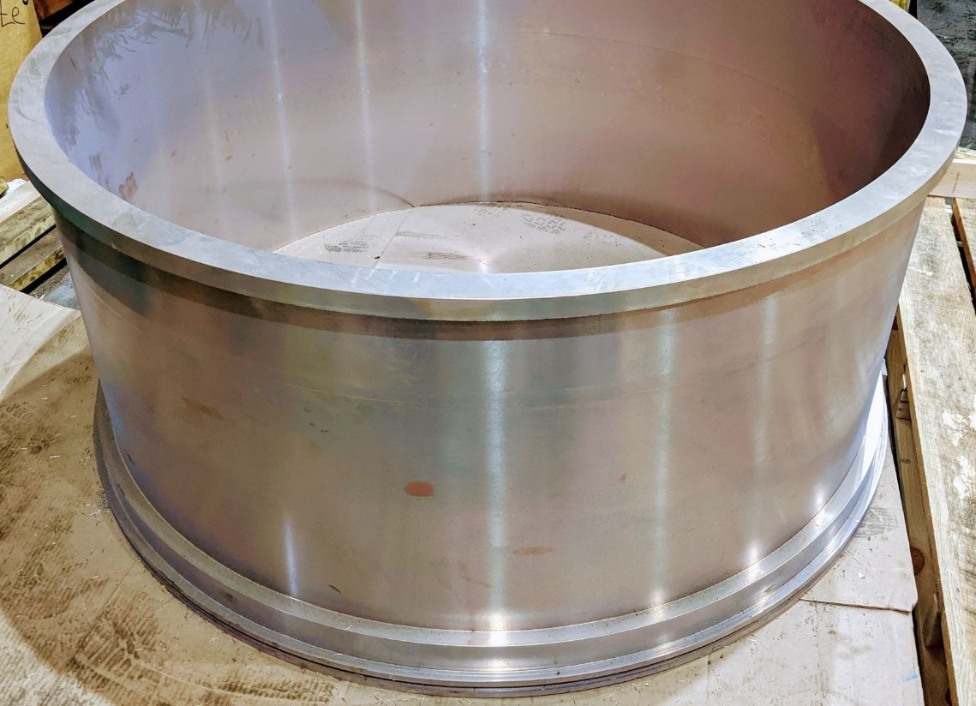

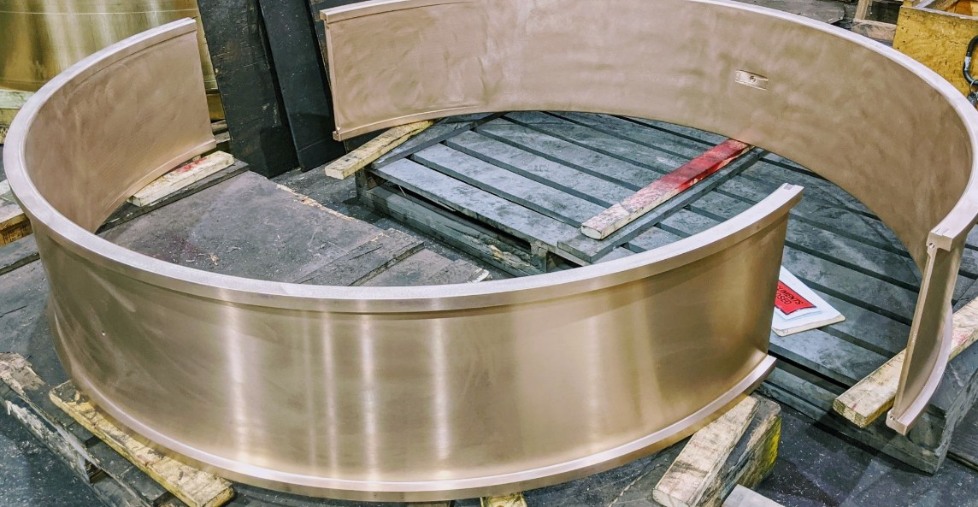

Custom Flange Bushings
The ability to withstand loads repeatedly is critical for heavy machinery. Boost equipment performance with flange bronze bushings from U.S. Bronze Foundry & Machine.
What’s a flange bushing?
Flange bushings are sleeve-style bearings with an integral flange, or shoulder, at one end. The flange aids alignment during assembly, provides a positive locating surface, and serves as a built-in thrust face to control axial movement. Because the flange sets the position of the bushing and prevents it from walking, installation is faster, more repeatable, and requires fewer separate components.
This configuration is especially well-suited to through-bolt and pass-through shaft applications. Flanged bronze bushings mount flush and square to a plate or bracket, allowing hardware to run parallel to the mounting surface. They deliver a more compact, lower-profile solution than pairing a straight bushing with a separate flanged housing, reducing space, weight, and assembly time while maintaining accurate alignment. See how they compare to a straight bushing: https://usbfmi.com/straight-bushings/
Why bronze flange bushings
- Durable, versatile material: Bronze offers excellent wear characteristics, good load capacity, and compatibility with a wide range of shaft materials.
- Supports radial and thrust loads: The sleeve carries radial load while the flange provides a thrust surface for axial positioning.
- Installation-friendly: The flange acts as a built-in stop, simplifying press-fit or slip-fit assembly and helping maintain perpendicularity to the mounting plate.
- Compact by design: Fewer parts and a smaller envelope than using a straight bushing in a flanged housing, ideal where space is limited.
Typical uses include linkages, hinges, pivot points, pulleys and sheaves, agricultural and construction equipment, material handling systems, and general machinery where dependable alignment and long service life are required. Options can include different bronze alloys and lubrication features to suit operating speeds, loads, and environments.
onze bushings can be easily mounted parallel to a plate and is more compact than fitting a straight bushing into a flanged housing.
Our flange bushing capabilities
U.S. Bronze Foundry & Machine is a full-service manufacturer of flange bushings for heavy machinery. All metal casting steps are performed in-house under the supervision of quality-minded managers. Our capabilities include:
- Research & Design
- Mold-Making
- Prototyping
- Full-Scale Casting
- Finished Machining
- Inspection
- Delivery
We produce standard and custom flange bushings per client specifications using centrifugal and static casting techniques. Built-in automation and controls ensure the utmost precision and quality. Our specialty is manufacturing large items.
- Castings up to 35,000 pounds
- Lengths of up to 80 inches for centrifugally cast parts
- Outside diameters as large as 158 inches for centrifugally cast parts
- No size limit for statically cast parts
Our facility contains a machine shop, which enables us to deliver finished castings with precise dimensions. By eliminating time-consuming off-site secondary processing steps, client supply chains are streamlined. The shop contains advanced CNC equipment capable of machining workpieces with:
- Outside diameters of 150 inches
- Lengths of 80 inches
- Tolerances are +/- .001 inches
Work with us
Casting is both science and art. As a metal foundry with a century of experience, we expertly combine them to meet your exact requirements.
Whether you need one flange bushing or a thousand of them, U.S. Bronze Foundry & Machine is the casted parts provider you can trust. Our team can turnaround rough parts as quickly as two weeks and finished pieces as fast as eight weeks, depending on lead time and other factors.
Feel free to contact us to discuss our custom flange bushings.
Materials that stand up to wear
Casting and mold materials can be an essential concern for a project. U.S. Bronze Foundry & Machine has the experience and metallurgical knowledge to help you identify the best metal alloys for your application. Those we use regularly include:
Flange bronze bushings are perfect for hard-wearing applications. They have longer lifespans than brass flange bushings. Additionally, this bushing type better resists shock, impact, wear, and corrosion.
